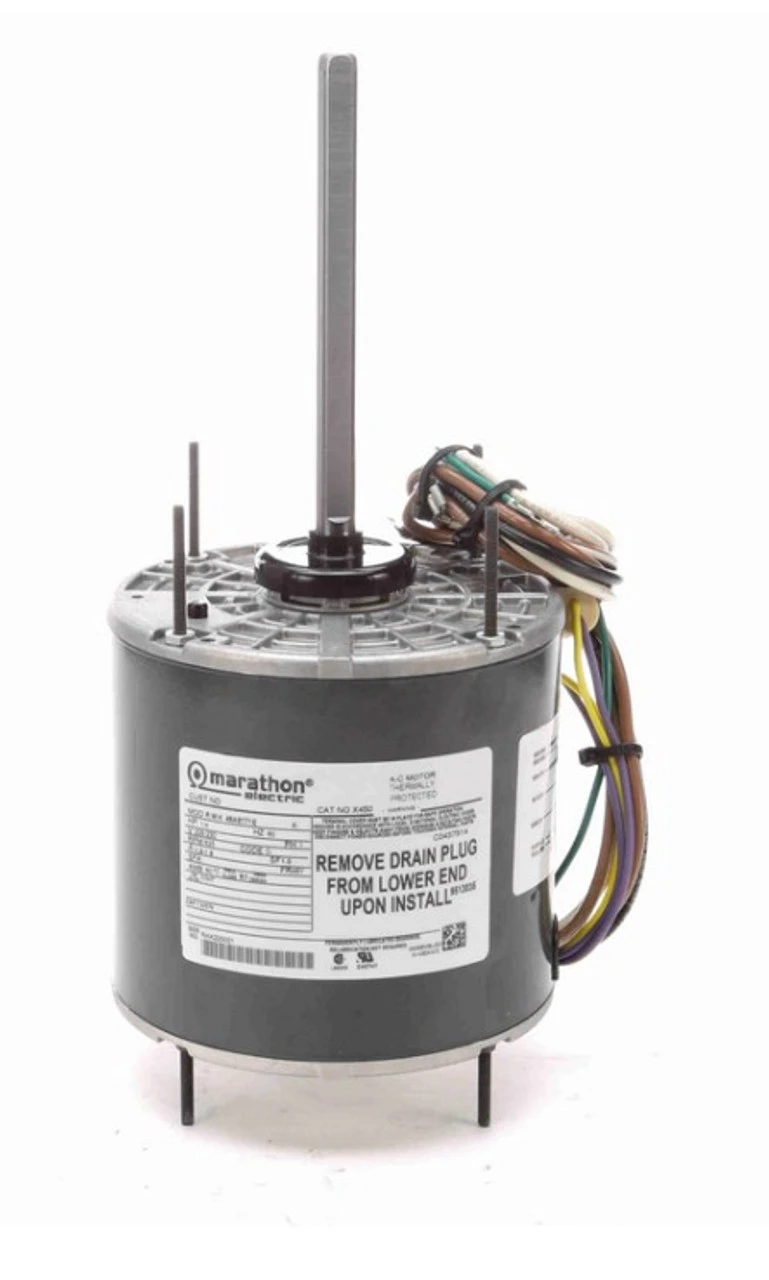

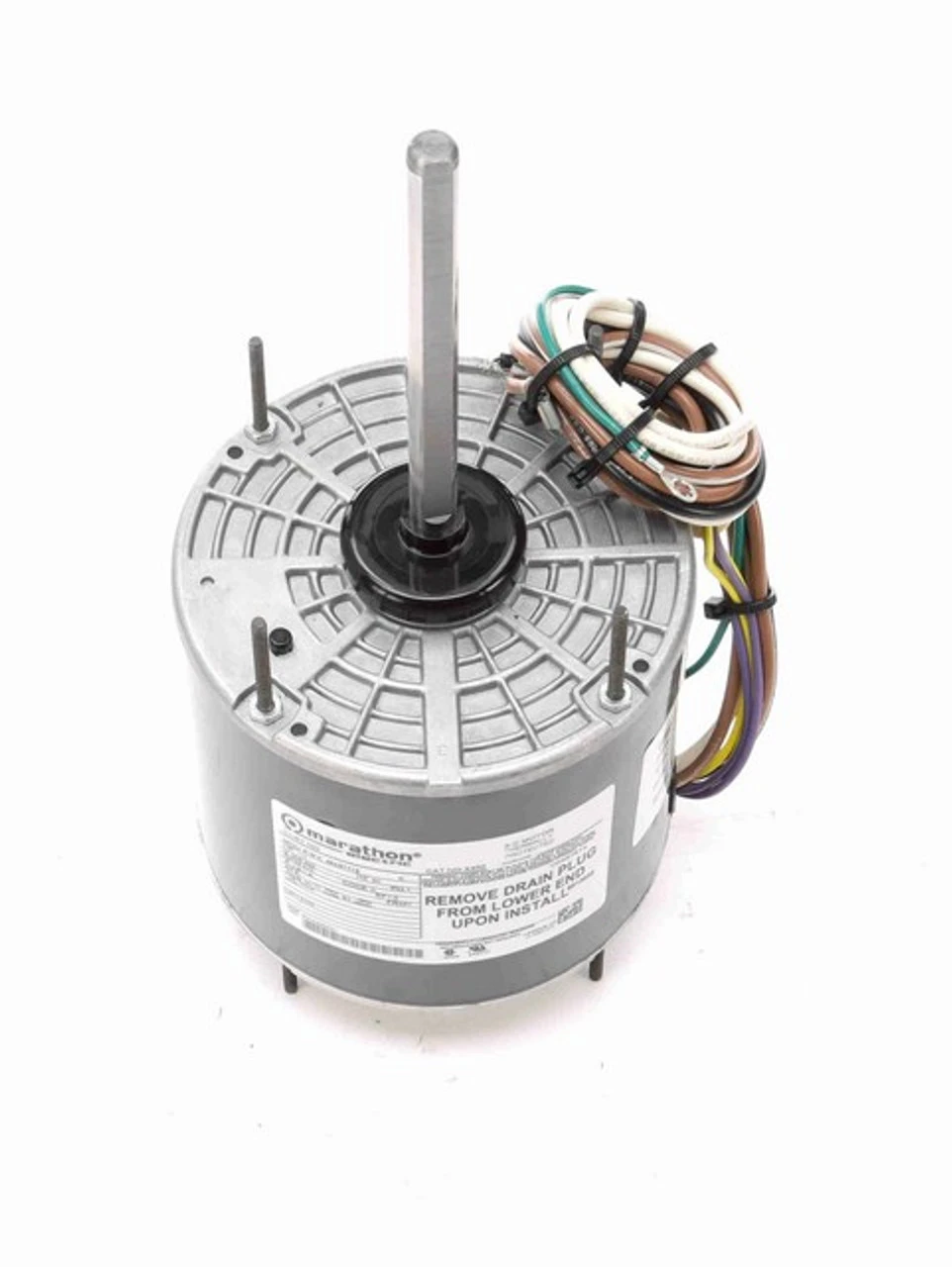

X450 Marathon 1/4 Hp 208-230V 825 RPM TEAO 48Y Frame Condenser Fan Motor

• 1/4 hp 825 RPM, 1.9 amps, 208-230 Volts 60 Hz, Permanent Split Capacitor (PSC)
• NEMA 48Y Frame Keyed Shaft 1/2″ Diameter x 6″
• Service Factor = 1.0, Thermal Protection = Automatic
• No Base, Reversible, Ball Bearings, Class B insulation
• 1 Year Manufacture Warranty

Condenser Fan Motors are used in air conditioning coolant condenser units usually found outdoors. Shaft may be vertical or horizontal. TEAO = Totally-Enclosed Air-Over so motor must be in air-stream. 048A8T71
