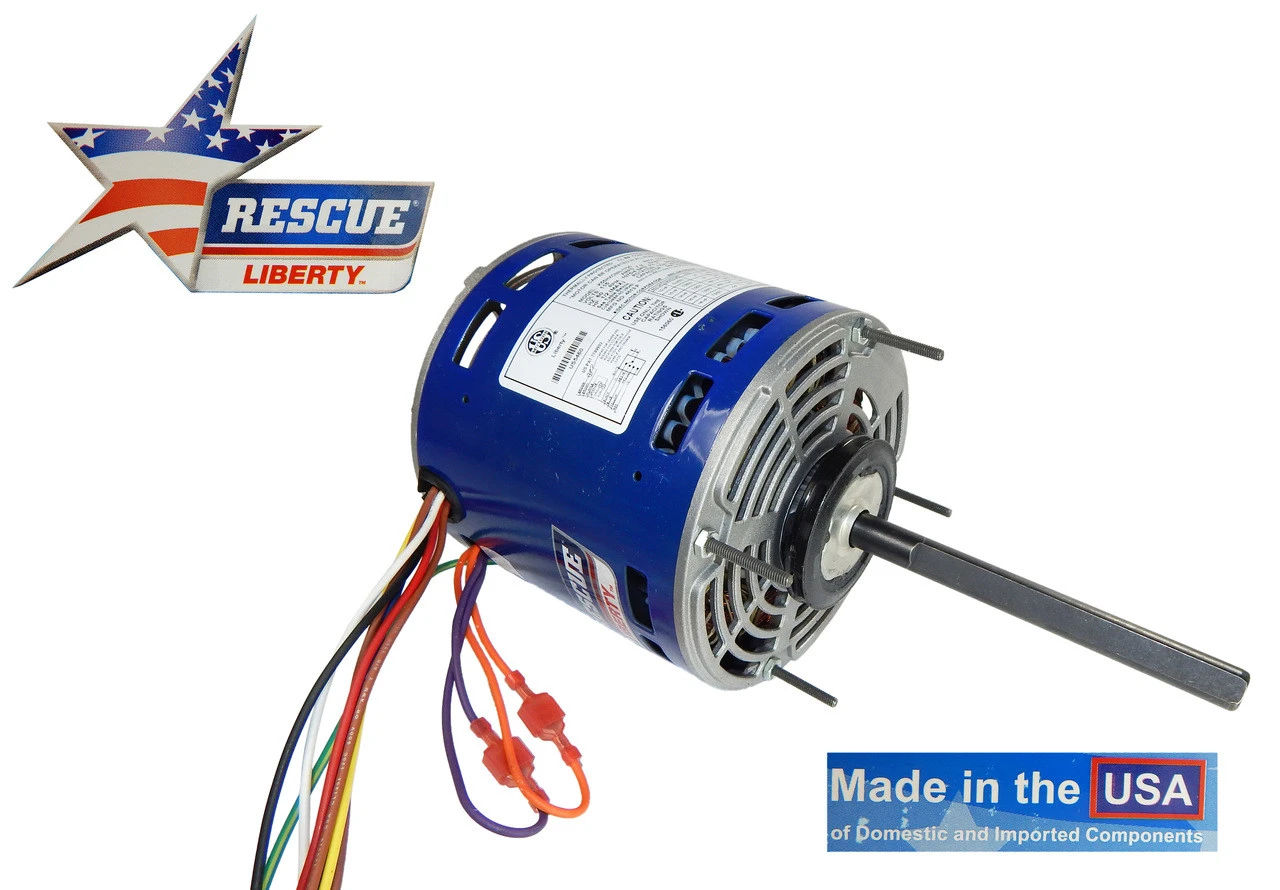

US5461 Nidec | 1/2-1/6 Hp 1075 RPM 4-Speed 5 5/8″ 208-230V Direct Drive Furnace Motor
Original price was: $173.50.$97.99Current price is: $97.99.
- Reliable Payments for Reliable Shopping
- Safe Transactions, Always
- Buy with Confidence, Get Quality
- 100% High Quality Guarantee
- 1/2 – 1/6 hp 1075 RPM, 3.6 amps 208-230V 60hz.
- 4-Speed
- 5.6″ Diameter Motor
- Multifit motor will replace 1/6 thru 1/2 hp motor
- Includes 10 MFD 370V Capacitor for 1/2 hp
- Includes 5 MFD 370V Capacitor for 1/3-1/6 hp
- Motor Body Length 5.25″
- Shaft 1/2″ x 5″, Rotation Reversible
- 40º Ambient Temp
- 2.5″ Diameter Rings
- Sleeve Bearings
- 36″ Wire Leads
- Rheem Shell Holes
- MADE IN USA of domestic & imported components
- 1 Year Manufacture Warranty.
Standard Efficiency Continuous Duty – Air Over; Permanent Split Capacitor. These motors will work in most “Belly Band Applications” meaning if the motor is mounted via a strap/clamp around the body of the motor or mounts with the motor “thru-bolts. Belly band brackets available: Torsion Flex Bracket (3-Prong) # 2MEY7, Torsion Flex Bracket (4-Prong) # FM554, Welded 3-Ring Bracket # 2MEV4.
Rescue Liberty Multi fit motor will replace 1/6, 1/4, 1/3, 1/2 hp direct drive blower motors.
Nidec RESCUE Motors Permanent Split Capacitor Furnace Blower Motor
