Home / Electric Motors / Dayton Gear Motors
  • Dayton Model 1LPU3 Gear Motor 92 RPM 1/2 Hp 115 Volts (2Z796) -Motor Electrical Shop 1LPU5 35708.1435077194
  • Dayton Model 1LNH2 DC Gear Motor 50 RPM 1/90 Hp 12VDC (4Z840) -Motor Electrical Shop 1LNG3 37471.1435077303
-30%

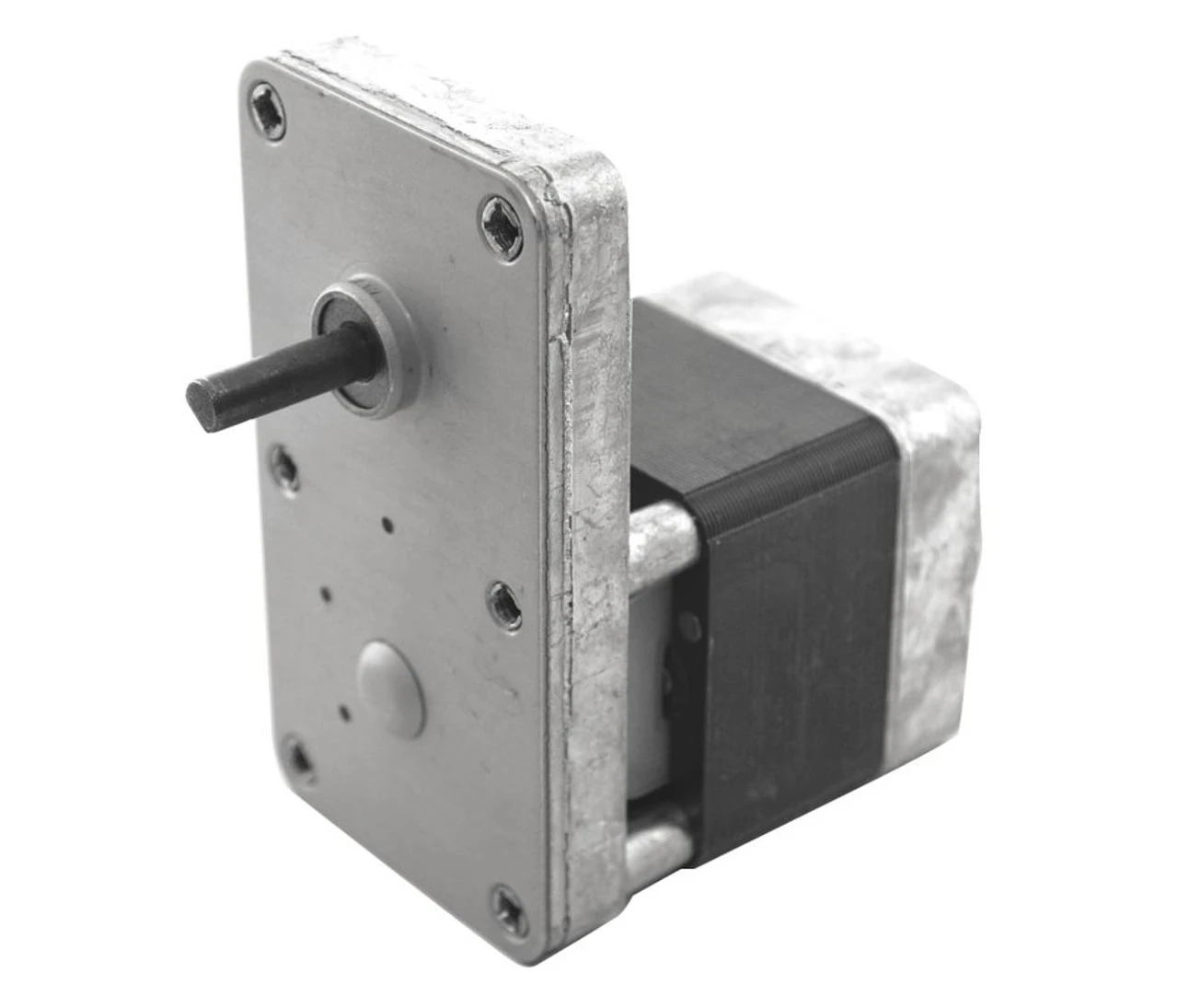

Dayton Model 52JE42 Gear Motor 18 RPM 1/150 Hp 115V With Brake
Dayton Model 52JE42 Gear Motor 18 RPM 1/150 Hp 115V With Brake - Image 2
Dayton Model 52JE42 Gear Motor 18 RPM 1/150 Hp 115V With Brake - Image 3

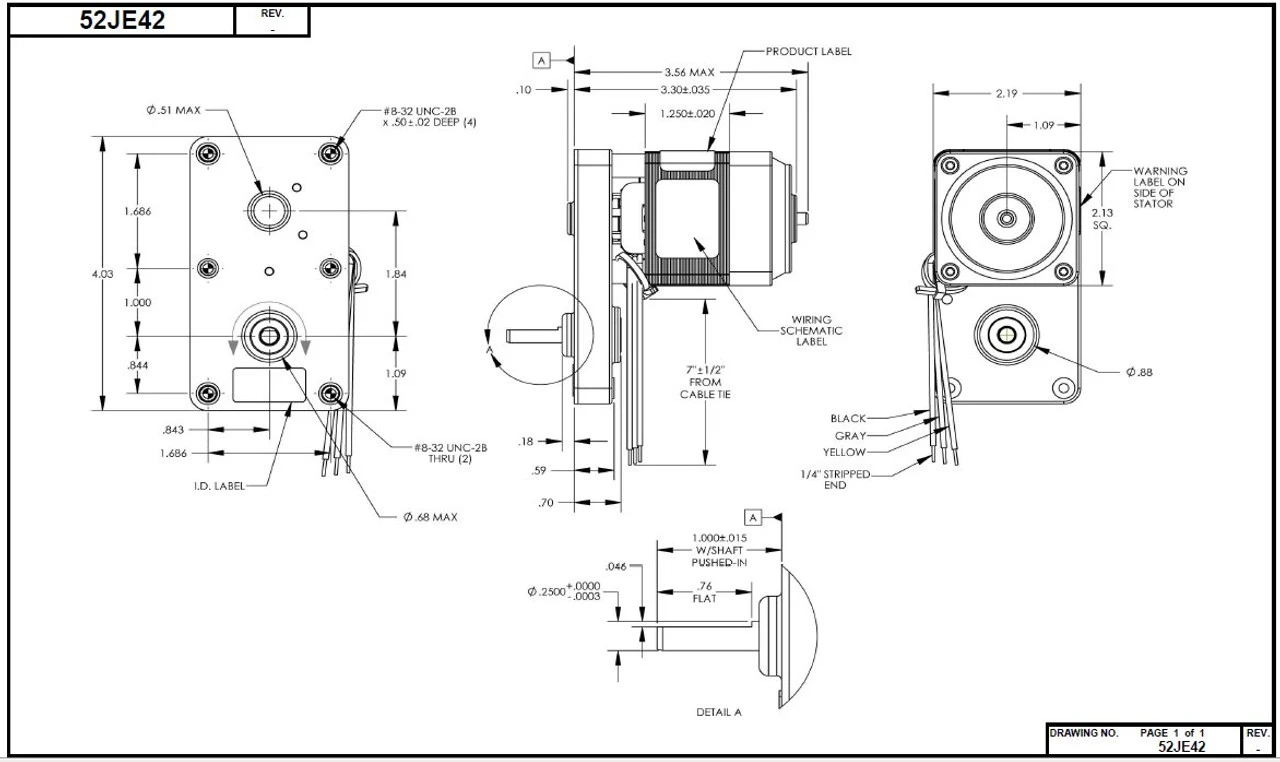

Dayton Model 52JE42 Gear Motor 18 RPM 1/150 Hp 115V With Brake -Motor Electrical Shop 52JE42 25444.1485697744
Dayton Model 52JE42 Gear Motor 18 RPM 1/150 Hp 115V With Brake -Motor Electrical Shop gr mtr connection 89167.1435076913

Dayton Model 52JE42 Gear Motor 18 RPM 1/150 Hp 115V With Brake

$127.30 Original price was: $127.30.$89.11Current price is: $89.11.

Buy Now
SKU: ZWXLY 1698663510 Categories: Dayton Gear Motors, Electric Motors Tag: Dayton
  • Reliable Payments for Reliable Shopping
  • Safe Transactions, Always
  • Buy with Confidence, Get Quality
  • 100% High Quality Guarantee
Browse
  • Bath-Kitchen-Vent Fan Motors
    • Broan
    • Universal Replacement Motors
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Carbonator Pumps & Motors
    • Dayton 3.3" Diameter Motors
    • Dayton Gear Motors
    • Dry Elevator Motors
    • Farm Duty Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Marathon FLEX-N-1 General Purpose Motors
    • Modine Replacement Motors
    • Motor Controls
    • Nidec Electric Motors
    • Rotisserie Motor 115V
    • Submersible Elevator Motors
    • TECO-Westinghouse Electric Motors
    • Unit Bearing Motors
    • Woodworking Motors
  • Fasco Blowers
    • Low Profile Blowers
    • Squirrel Cage Blowers
    • Transflo Blower
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Evaporative Cooler Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Ventilation Direct Drive Blower Motors
    • Water Heater Exhaust Blowers
  • Description
  • Reviews (0)
  • 1/150 hp, 18 RPM, 0.35 amps, 115 volts 60hz.
  • Run torque 8 inch pounds
  • Rotation = Reversible
  • Shaft: 1/4″ x 1″
  • Over Hung Pounds = 30
  • Permanent Split Capacitor Motor
  • Sleeve Bearings
  • Cone Brake
  • One Year Manufacture Warranty

QGM-5018-2 Requires 4MFD 370 volt capacitor (included). Mounting = Output Shaft Horizontal Only. Thermal Protection = Auto
Replaces Dayton 4Z455
