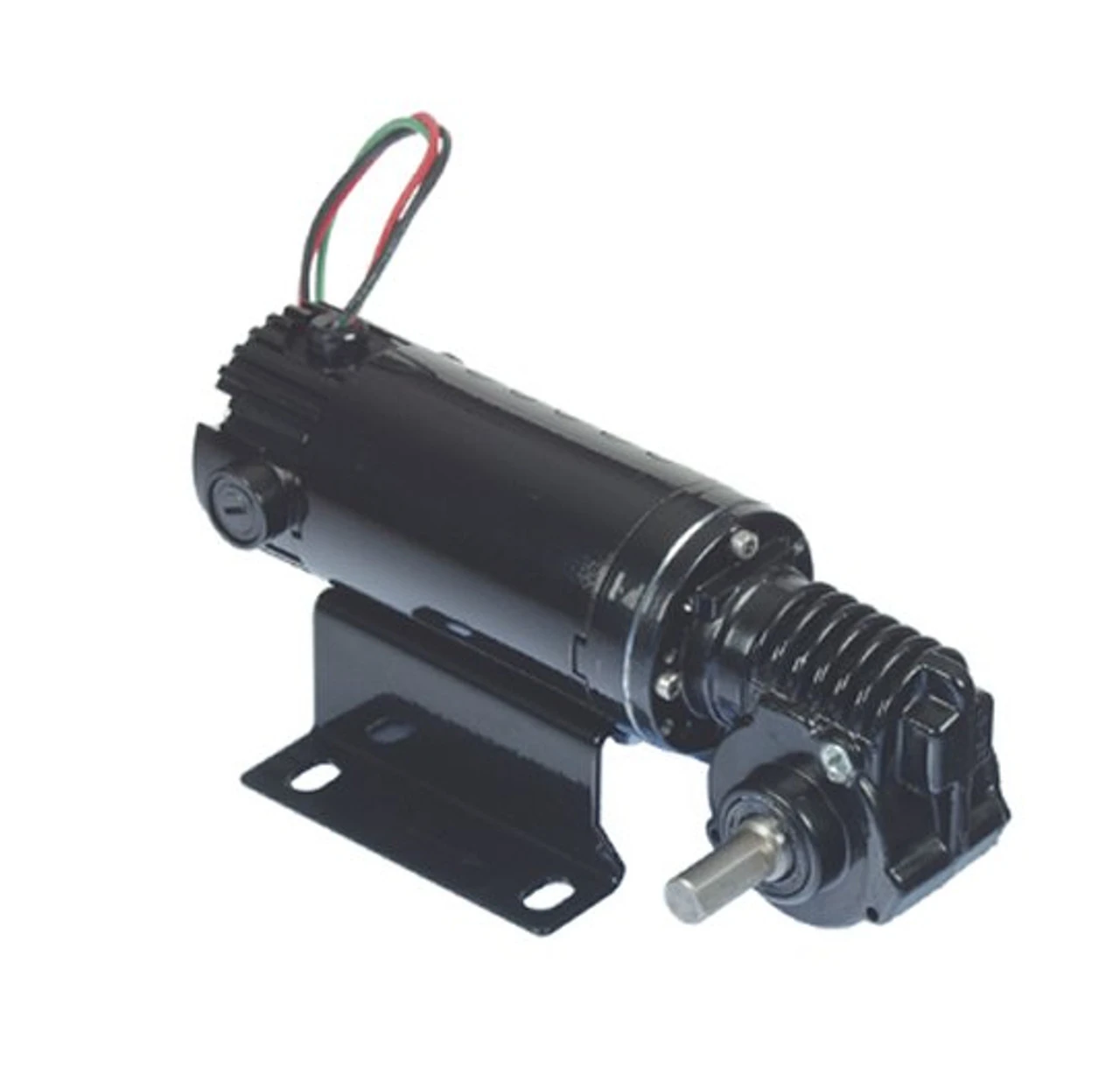

Bison 021-746-9010 Right Angle Gear Motor 1/15 Hp 180 RPM Hp 90V DC
Original price was: $301.00.$98.99Current price is: $98.99.
- Reliable Payments for Reliable Shopping
- Safe Transactions, Always
- Buy with Confidence, Get Quality
- 100% High Quality Guarantee
- 746 Series DC Right Angle Gear Motor – Subject to factory availability-email or call for availability
- Torque 15 inch pounds; Over Hung lbs. = 224
- Rotation = Reversible
- 1/15 hp 180 RPM, .8 amps, 90 Volts DC
- TEFC Enclosure, Keyed Shaft, Ball Bearings
Optional Accessories: P198-100-9111 Junction Box, P125-746-0500 Mounting Foot Plate. P158-200-2600, Replacement Brush Set # P158-200-2600. Permanent Magnet motor, Insulation Class B; Finish: Powder-coat gloss black; Brushes: Replaceable; Gearhead Specifications: Housing – Precision machined die cast aluminum; Shafts – Hardened steel; Gearing: Hardened Steel worm. Forged bronze gear; Lubrication: Lifetime oil bath, sealed and gasketed; Any angle mount; Bearings – Ball and Needle Bearings. Suggested replacement reference for: Baldor GP233001. Can use with Leeson speed control 174307, 174308.
