3130-305 RAE | Parallel Shaft Gearmotor – 12VDC, 91 RPM
Original price was: $361.00.$96.99Current price is: $96.99.
- Reliable Payments for Reliable Shopping
- Safe Transactions, Always
- Buy with Confidence, Get Quality
- 100% High Quality Guarantee
1/6HP, 94 RPM
12 Volts DC, 18.5 FLA
135 Output Torque (Inch pounds)
Shaft: 5/8 x 1.25 inch, keyed
Gear ratio: 19:1
Enclosure rating: IP55

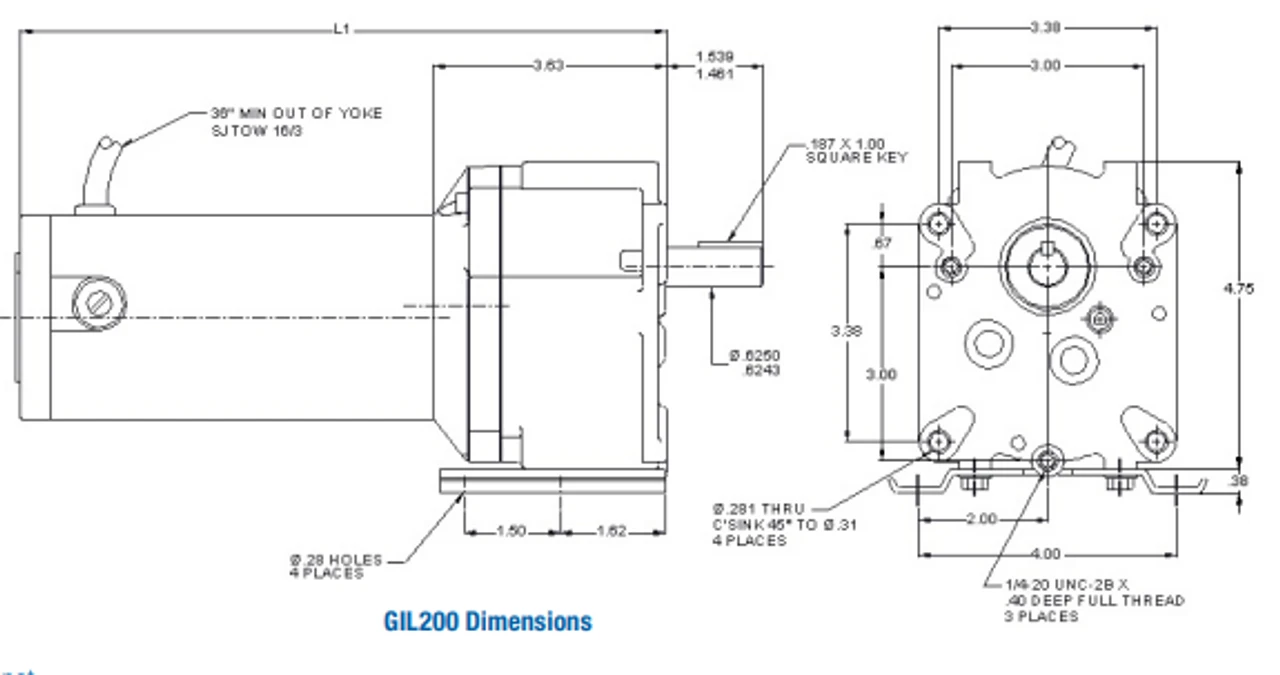

The GIL200 Series Gearbox, when matched with the appropriate RAE motor, provides high output torque in a compact, rugged diecast parallel shaft gearmotor design
• Gearbox Designed to AGMA Standards
• Oil Filled
• Needle Bearings (Gearbox)
• High Energy Ceramic Magnets
• Double Shielded Ball Bearings (Motor)
• Dynamically Balanced Armature
• Reversible Design
• 36” “Cord
• TENV Design
• Externally Replaceable Brushes
• Auto-Hook Tang Type Commutator
• Class “F” Insulation
Cross References – This motor is a suggested replacement for the following motors. RPM, amps, shaft length, etc may not be exact, please double check your application and mounting requirement.
Dayton 1Z831
RAE 3130305
