194012.00 Leeson SST Duck 25 Hp 3600 RPM 208-230/460V 3-Phase 284TC Frame TEFC (base) Motor
Original price was: $347.00.$97.99Current price is: $97.99.
- Reliable Payments for Reliable Shopping
- Safe Transactions, Always
- Buy with Confidence, Get Quality
- 100% High Quality Guarantee
- 25 hp 3600 RPM, 63-56.5/28.3 amps 208-230/460 Volts 60 Hz. Three Phase

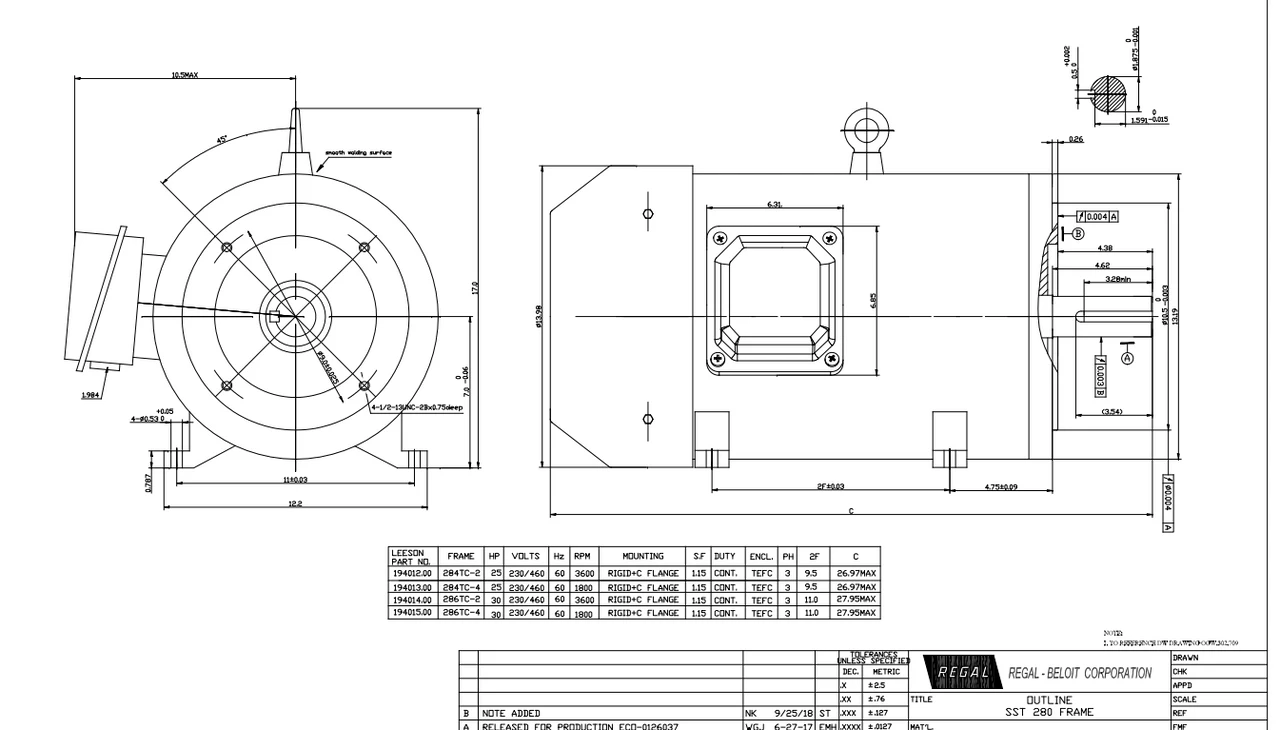

- NEMA 284TC frame, C-face, Stainless Steel Keyed Shaft 1 7/8″ Diameter x 4 5/8″
- Service Factor: 1.15, Overload protection = None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- 1 Year Manufacture Warranty,

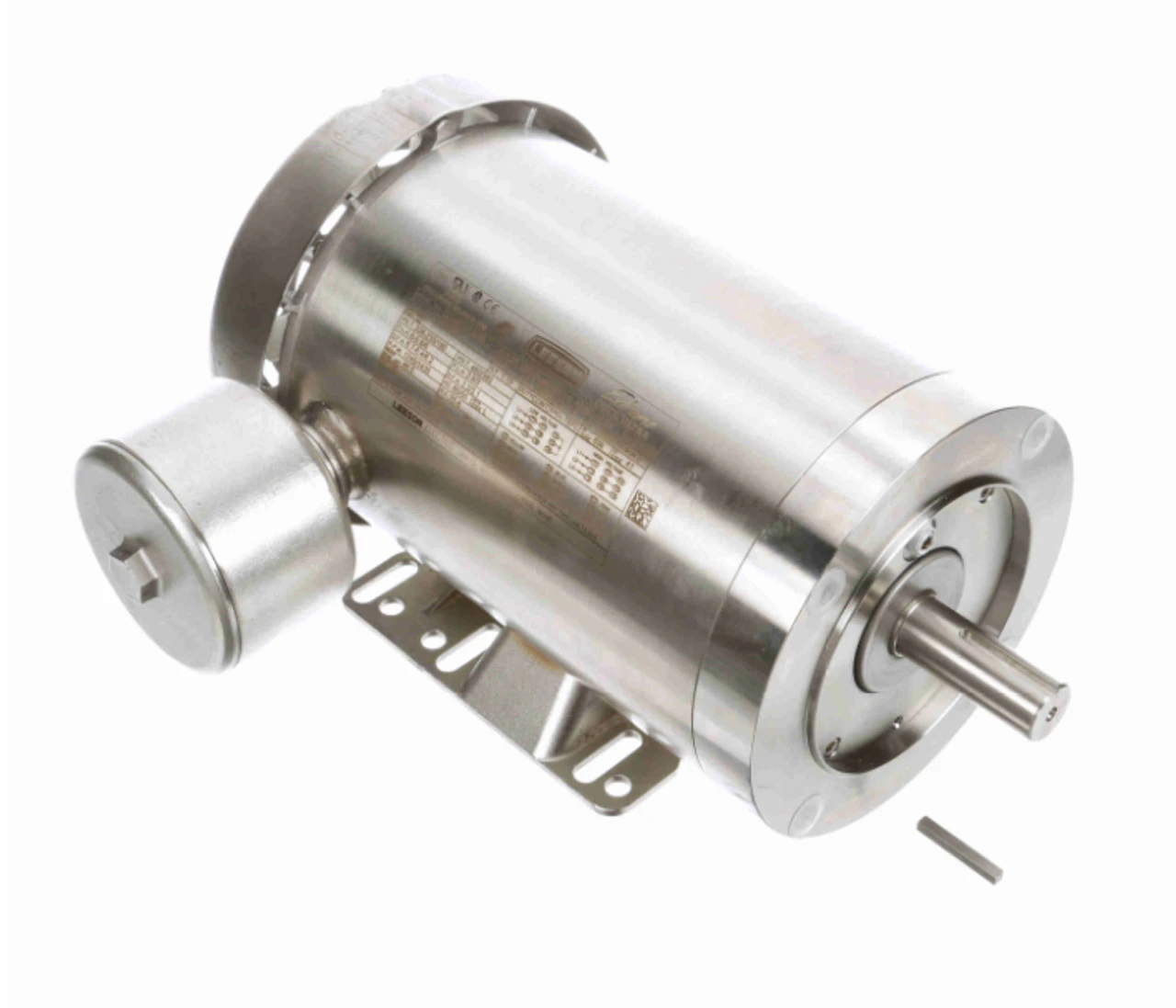

Full stainless steel exterior promotes resistance to water and chemical corrosion. This is a three phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 194012.00
