- 5 hp 3450 RPM, 22.0 amps, 208-230V 60hz.; Single Phase
- Open Drip Proof – Ball Bearings – Service Factor 1.15
- Ball Bearings – Electrically Reversible; No Overload Protection

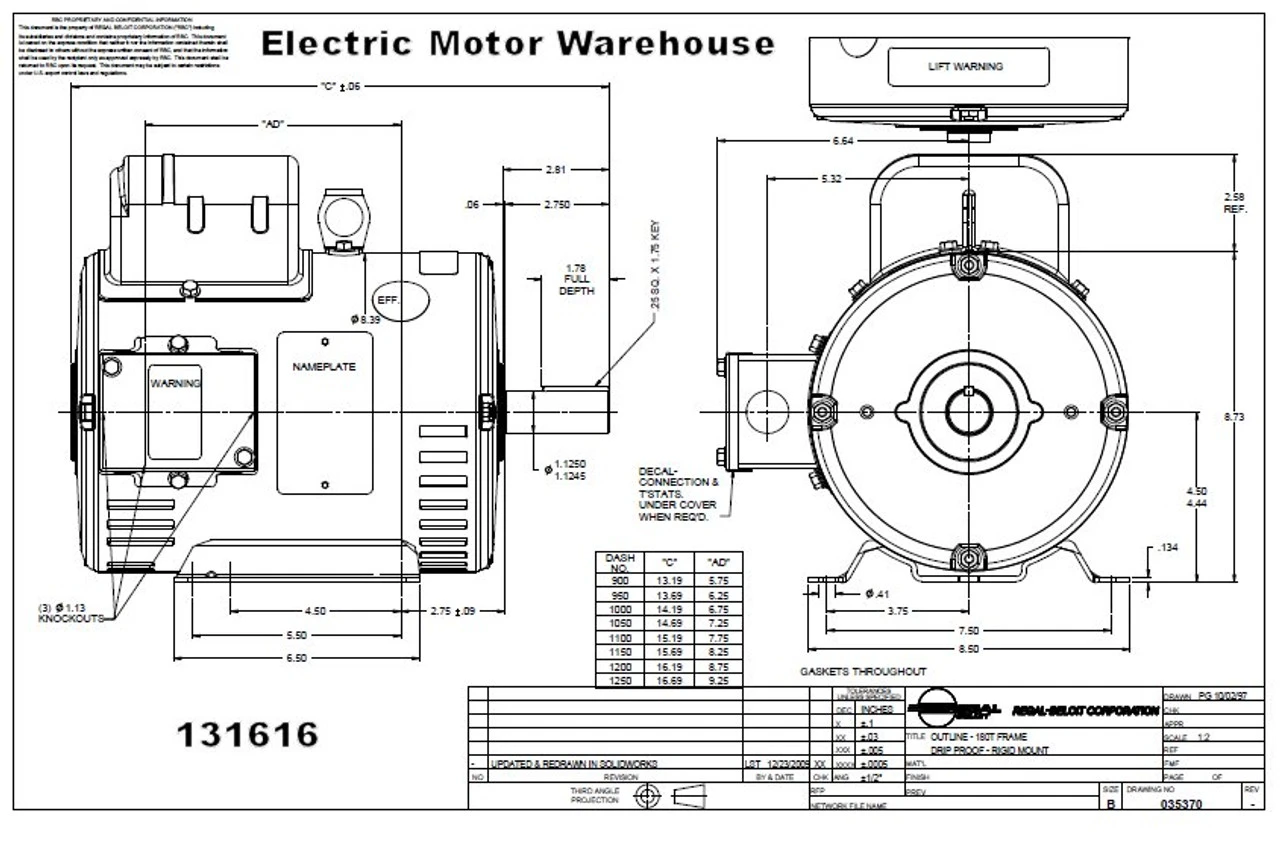

- NEMA 184T Frame – Shaft: 1 1/8″ x 2 3/4″ – Insulation class F
- Capacitor Start/Capacitor Run
Standard 5hp general purpose Electric motor. Applications: Air Compressors, sprayers and many other applications. If you need to replace a 3 phase, 5hp Electric motor to a single phase motor, this will work Fine. Motor has standard 184T flat mounting base. Overall Length = 14.69″ 1 Year manufacture warranty.
C184K34DB3B, 131616.00
