120998.00 Leeson | 4 Hp 3450 RPM Delta Unisaw Electric Motor 230 Volts
Original price was: $390.00.$95.99Current price is: $95.99.
- Reliable Payments for Reliable Shopping
- Safe Transactions, Always
- Buy with Confidence, Get Quality
- 100% High Quality Guarantee
DELTA UNISAW REPLACEMENT MOTOR
- 4 hp 3450 RPM, 17.6 amps, 230V 60hz.; Single Phase
- Shaft Size: 3/4″ Diameter x 1-3/4″ Length
- Supplied with 54″ Electric cord
- Totally Enclosed Fan Cooled
- Electrically Reversible
- 145Y Frame Specialty Mounting Bracket
- Overload Protection = None
- Ball Bearings, Service Factor 1.0, Class F Insulation
- Overall Motor Length = 13.69 inches
- 1 year manufacture warranty
Special Mounting:

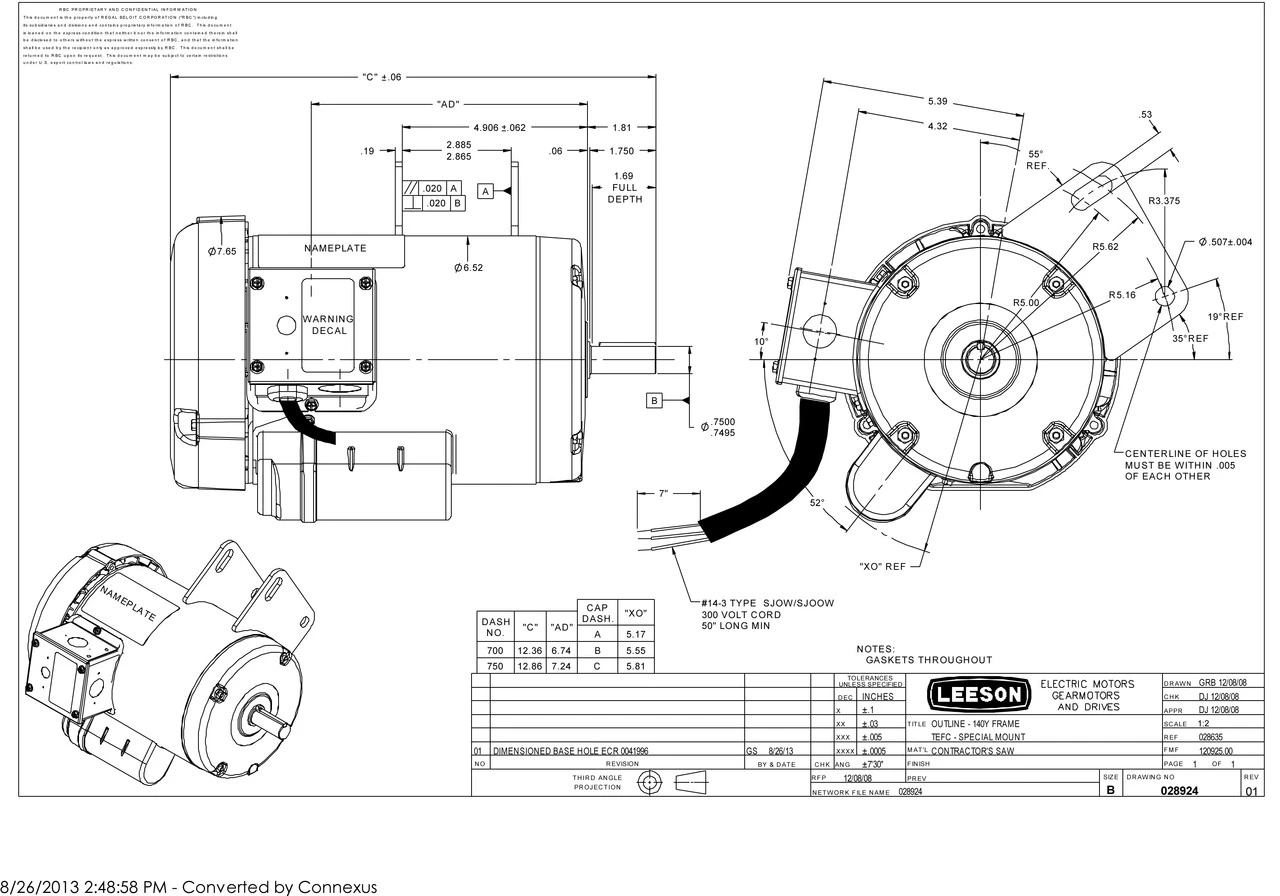

Motor pivots on rod for belt tensioning. We are unsure if this is for a right or left tilt saw, please check the dimensional diagram to make sure the bracket is on the correct side for your saw.
Totally enclosed fan cooled motor produces extra high breakdown torques for maximum cutting power.
Wiring diagram on motor nameplate. Please double check motor connection before installation. Capacitor start/capacitor run for reduced amperage.
Leeson Model: C145K34FB16E
Leeson Catalog No. 120998.00
Dayton 1XEN2
