Home / Electric Motors / Farm Duty Motors
  • 117883.00 Leeson 1 Hp 1800 RPM 115/230V 56YZ Frame TEFC 1-Phase Auger Drive Motor -Motor Electrical Shop 83 front 92490.1645545126
  • 116202.00 Leeson 1 Hp 900 RPM 208-230/460V 56C Frame TEAO 3-Phase Farm Fan Motor -Motor Electrical Shop 2 front 16282.1646157548
-72%

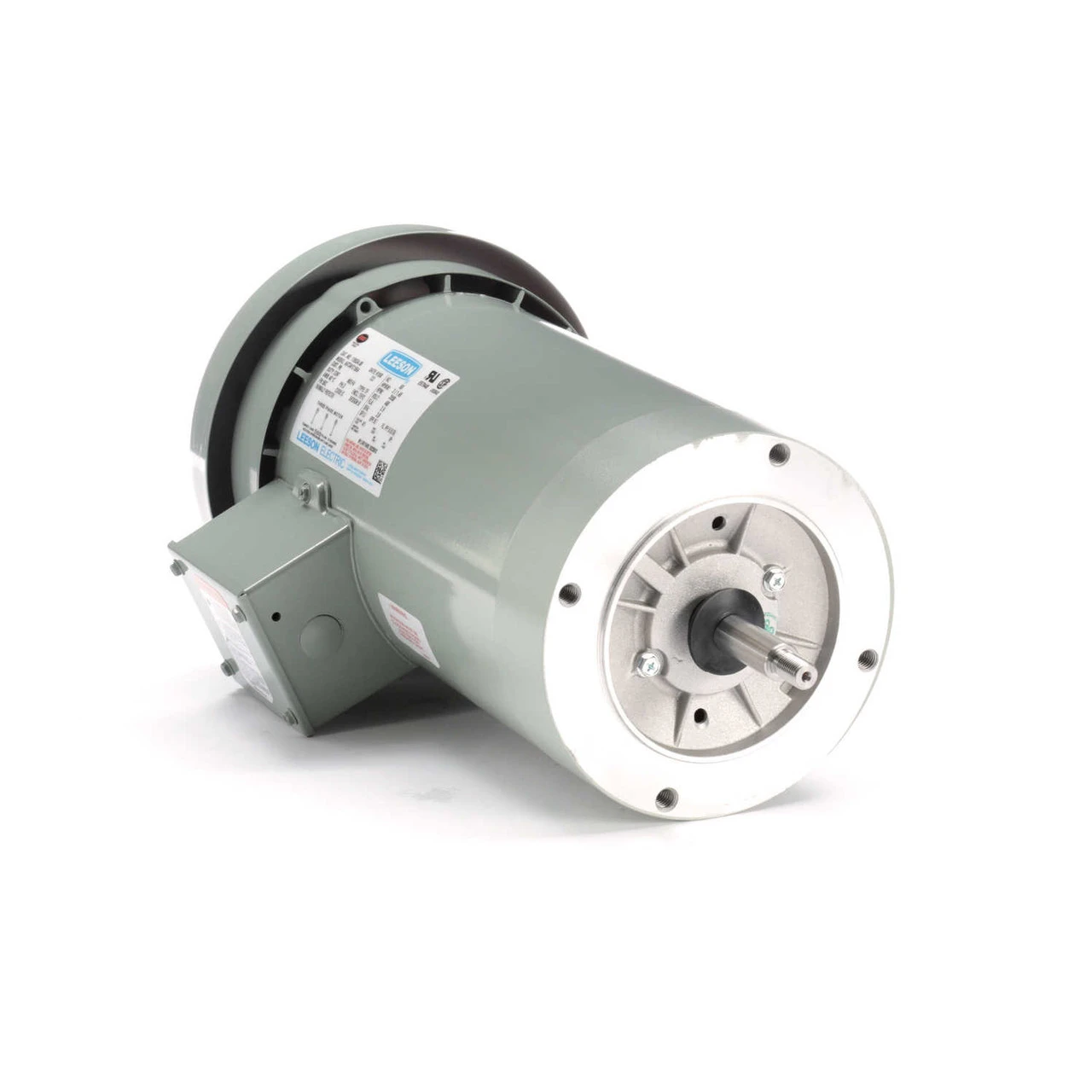

119534.00 Leeson | 2 Hp 3450 RPM 56J Frame 460V Pivotal Irrigation Booster Farm Motor
119534.00 Leeson | 2 Hp 3450 RPM 56J Frame 460V Pivotal Irrigation Booster Farm Motor - Image 2
119534.00 Leeson | 2 Hp 3450 RPM 56J Frame 460V Pivotal Irrigation Booster Farm Motor - Image 3
119534.00 Leeson | 2 Hp 3450 RPM 56J Frame 460V Pivotal Irrigation Booster Farm Motor - Image 4
119534.00 Leeson | 2 Hp 3450 RPM 56J Frame 460V Pivotal Irrigation Booster Farm Motor - Image 5

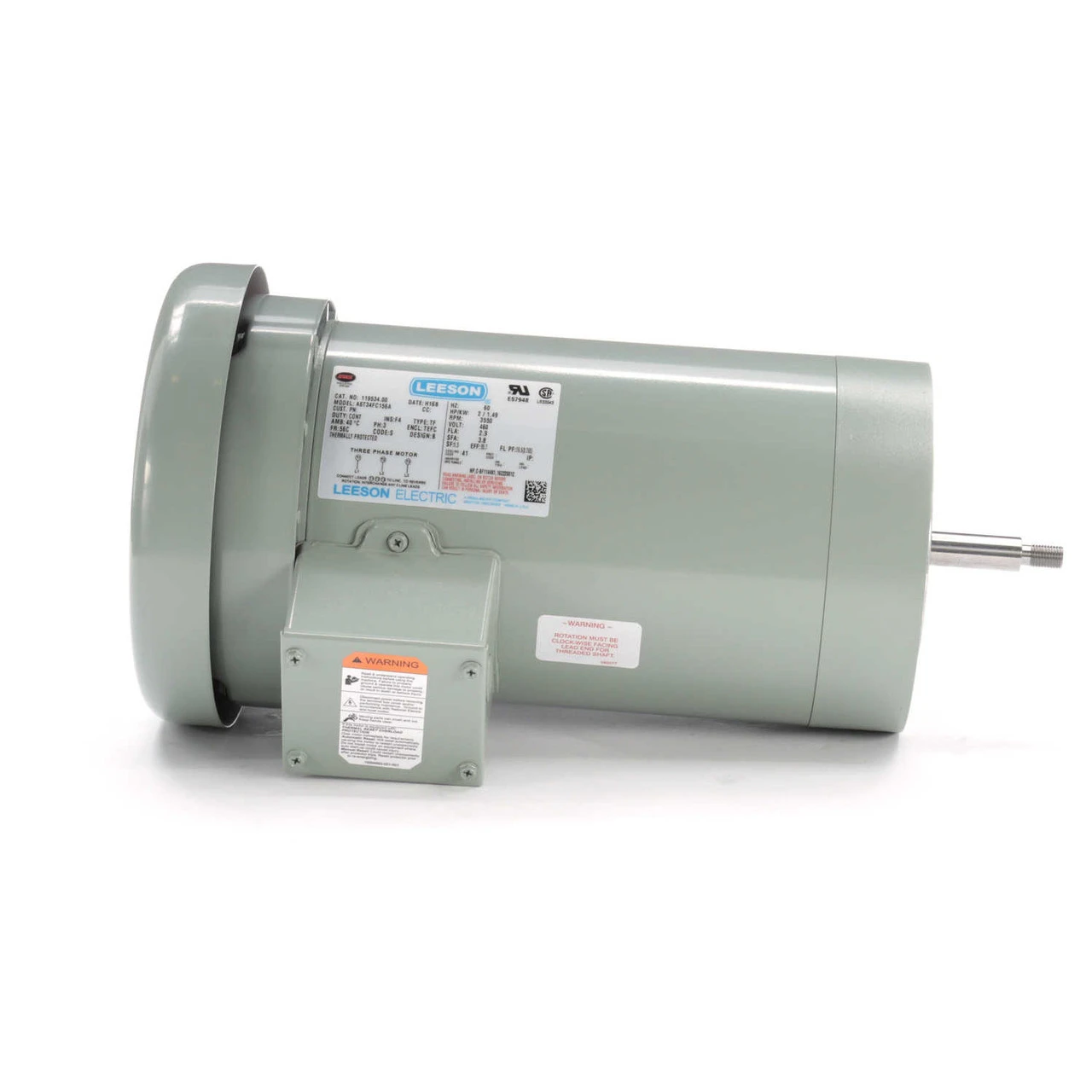

119534.00 Leeson | 2 Hp 3450 RPM 56J Frame 460V Pivotal Irrigation Booster Farm Motor -Motor Electrical Shop 119534b 30725.1572362475

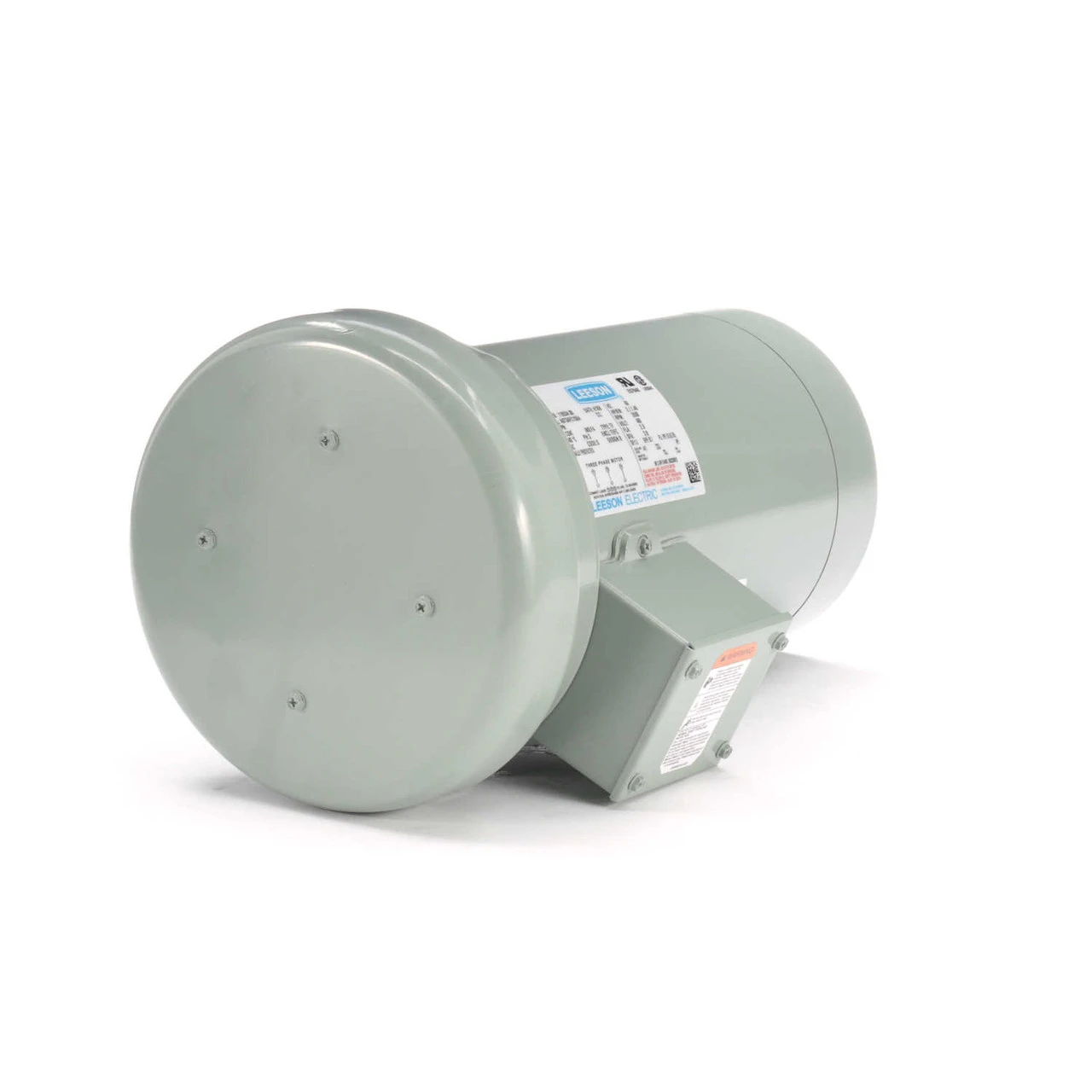

119534.00 Leeson | 2 Hp 3450 RPM 56J Frame 460V Pivotal Irrigation Booster Farm Motor -Motor Electrical Shop 119534a 88276.1572362465

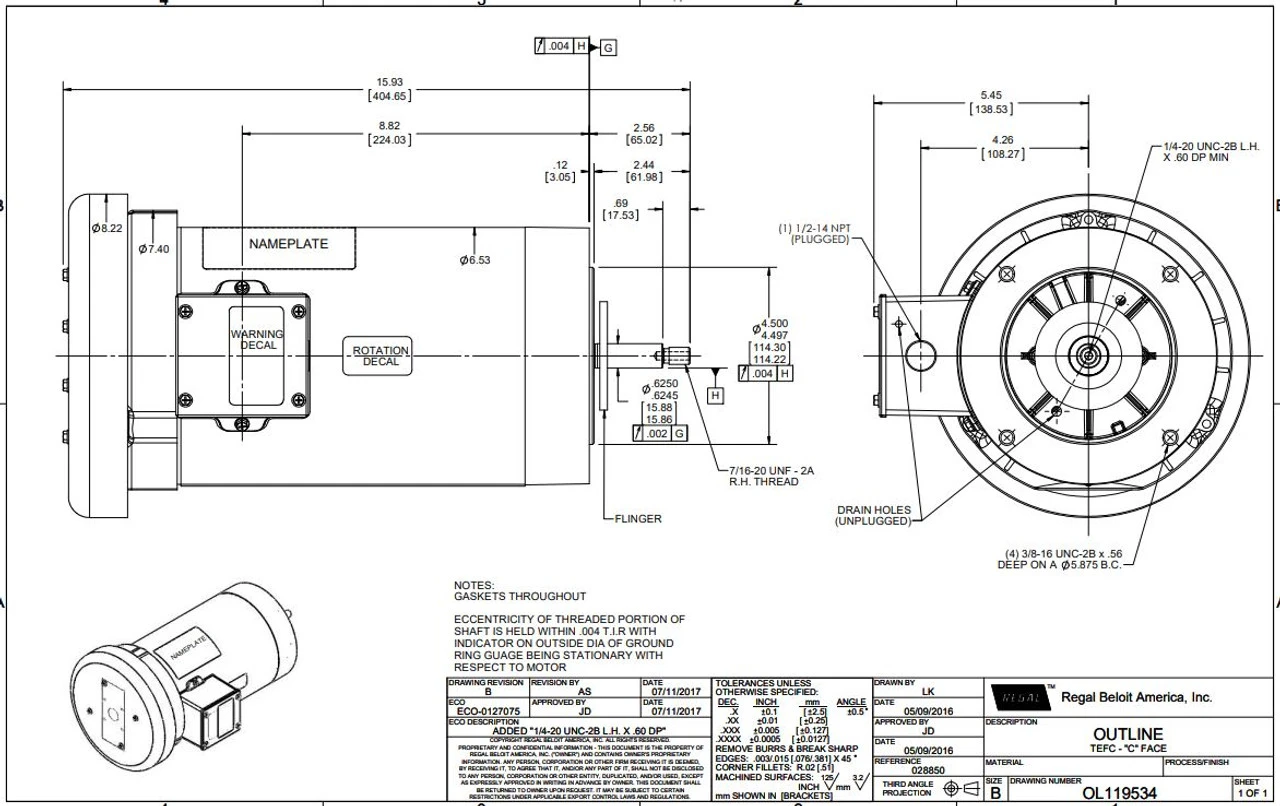

119534.00 Leeson | 2 Hp 3450 RPM 56J Frame 460V Pivotal Irrigation Booster Farm Motor -Motor Electrical Shop 119534dim 58419.1572362466

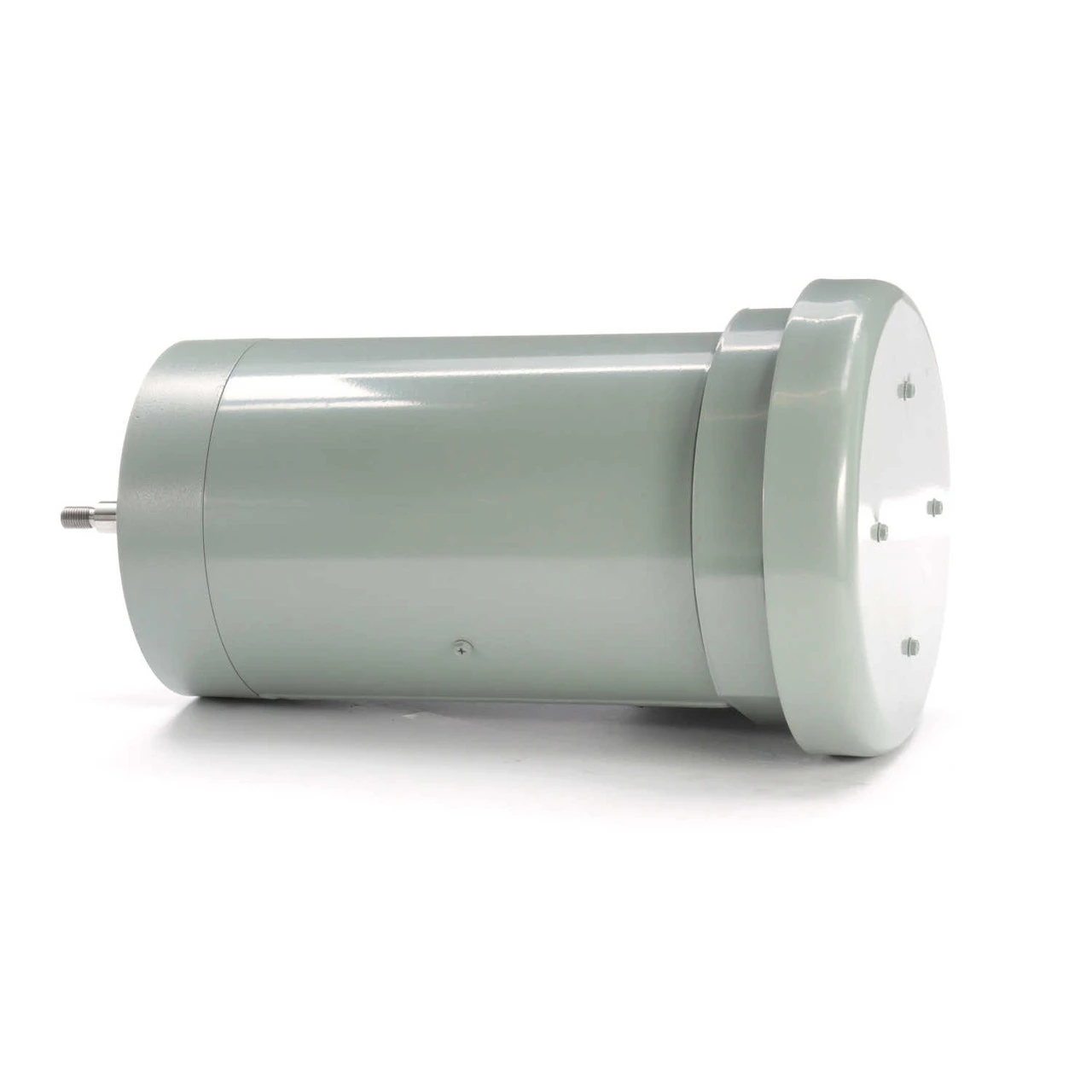

119534.00 Leeson | 2 Hp 3450 RPM 56J Frame 460V Pivotal Irrigation Booster Farm Motor -Motor Electrical Shop 119534c 90426.1572362466

119534.00 Leeson | 2 Hp 3450 RPM 56J Frame 460V Pivotal Irrigation Booster Farm Motor

$342.00 Original price was: $342.00.$95.99Current price is: $95.99.

SKU: ZWXLY 1698665582 Categories: Electric Motors, Farm Duty Motors Tag: Leeson
  • Reliable Payments for Reliable Shopping
  • Safe Transactions, Always
  • Buy with Confidence, Get Quality
  • 100% High Quality Guarantee
Browse
  • Bath-Kitchen-Vent Fan Motors
    • Broan
    • Universal Replacement Motors
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Carbonator Pumps & Motors
    • Dayton 3.3" Diameter Motors
    • Dayton Gear Motors
    • Dry Elevator Motors
    • Farm Duty Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Marathon FLEX-N-1 General Purpose Motors
    • Modine Replacement Motors
    • Motor Controls
    • Nidec Electric Motors
    • Rotisserie Motor 115V
    • Submersible Elevator Motors
    • TECO-Westinghouse Electric Motors
    • Unit Bearing Motors
    • Woodworking Motors
  • Fasco Blowers
    • Low Profile Blowers
    • Squirrel Cage Blowers
    • Transflo Blower
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Evaporative Cooler Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Ventilation Direct Drive Blower Motors
    • Water Heater Exhaust Blowers
  • Description
  • Reviews (0)
  • 2 hp 3450 RPM, 2.9 amps, 460 Volts 60hz Three Phase
  • 5/8″ diameter threaded shaft
  • TEFC with rain canopy
  • Rotation = Reversible; Insulation Class F
  • Service Factor 1.5
  • Epoxy paint and fully gasketed
  • One year manufacture warranty.

Threaded-shaft jet pump motor for shaft down mounting. Locked bearing on shaft end, for longer motor life. Neoprene shaft flinger repels moisture. Drain holes in C face and conduit box. Stator impregnated with extra-heavy varnish system.

Model A6T34FC156A; 119534.00, Replaces 112991.00
