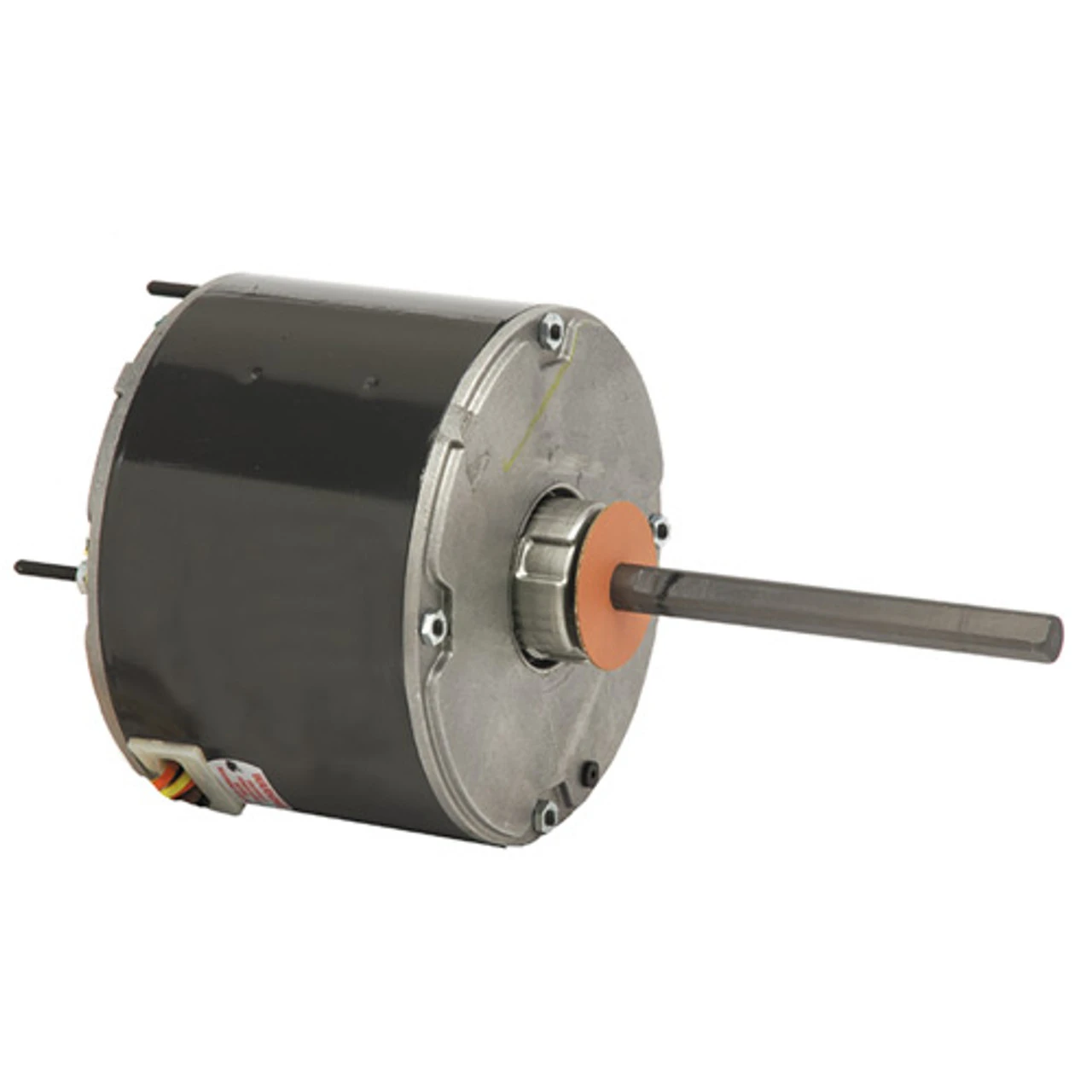

1098 Nidec 1/2 Hp 1075 RPM 575V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor

1098 Nidec 1/2 Hp 1075 RPM 575V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor - Image 2

1098 Nidec 1/2 Hp 1075 RPM 575V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor -Motor Electrical Shop 1098 line 80967.1675799920

1098 Nidec 1/2 Hp 1075 RPM 575V 5.6″ Dia. (No Base) 1-Speed TEAO Condenser Motor

Original price was: $297.10.Current price is: $97.99.

SKU: ZWXLY 1698667664 Categories: Air Condenser Fan Motor, HVAC Motors & Draft Inducers Tag: Nidec

Reliable Payments for Reliable Shopping
Safe Transactions, Always
Buy with Confidence, Get Quality
100% High Quality Guarantee

Description
Reviews (0)

1/2 hp 1075 RPM, 1.0 amps 575V Volts 60 Hz PSC Motor
NEMA 5.6″ Dia. Frame, Rolled Steel, Flat Shaft 1/2″ Diameter x 4 1/2″
Overload Protection: Auto
Stud Mount, Ball Bearings, Class B Insulation, Rev
1 Year Manufacture Warranty

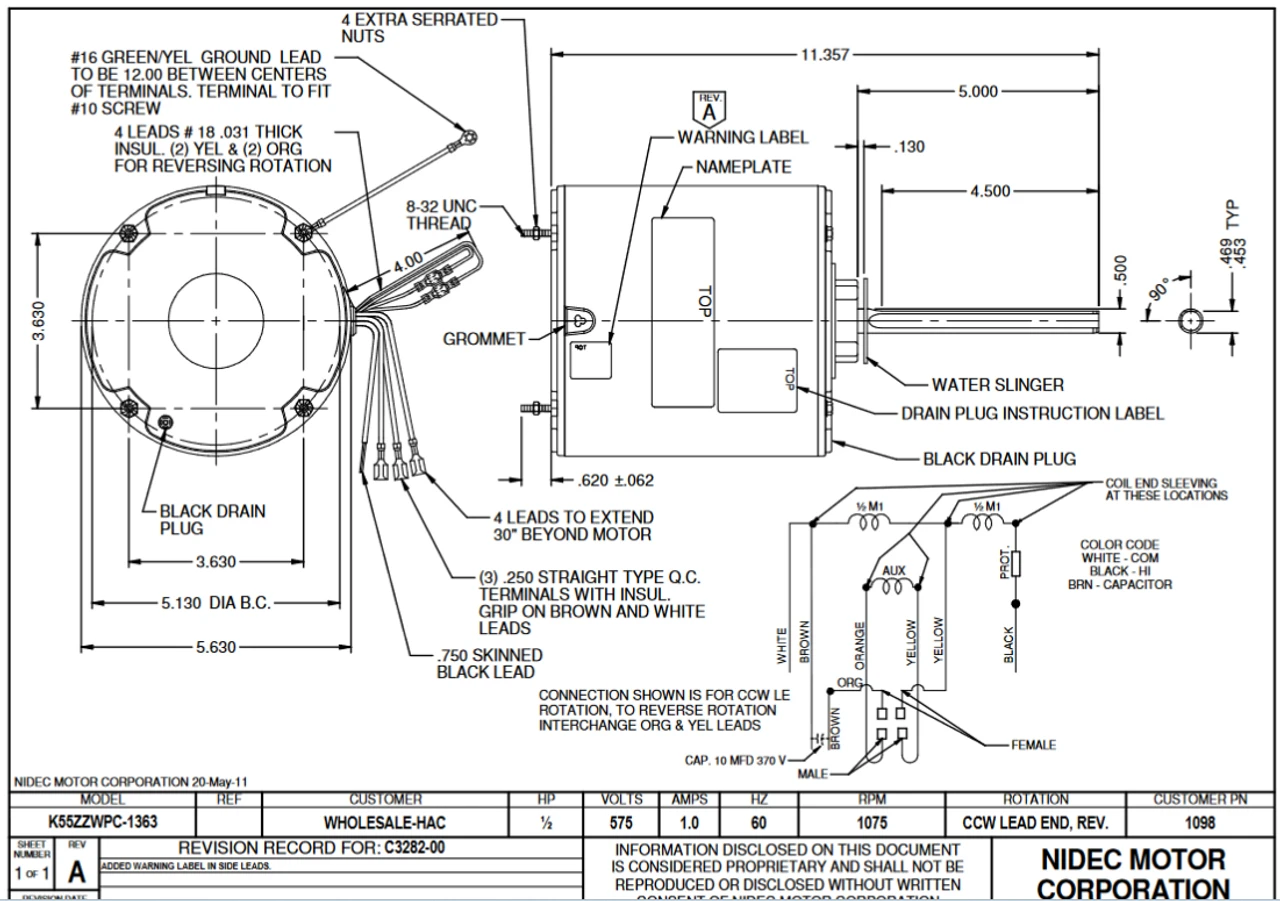

Condenser Fan Motor. Wiring diagram on motor name plate. TEAO = Open Drip Proof, K055WPC1363012B
